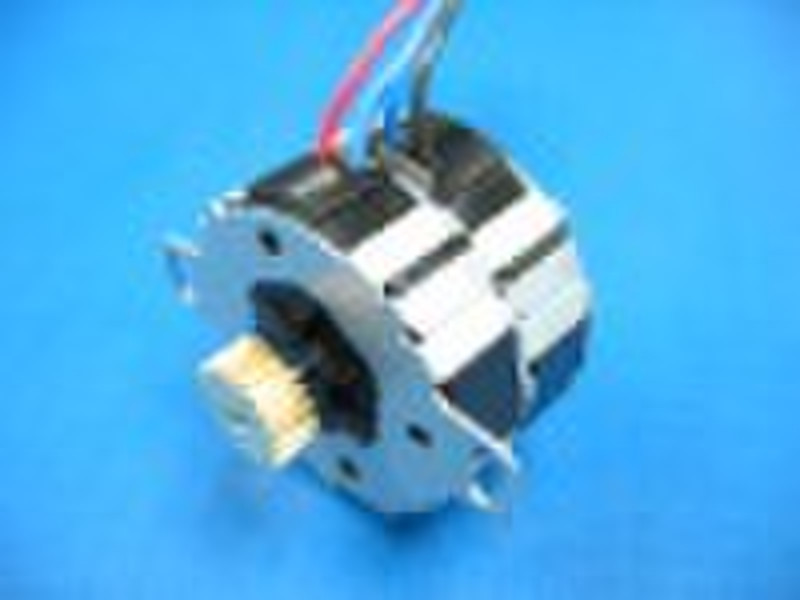

UBR2 Synchronous motors
Marco Lee
Contact person
Basic Information
Synchronous motors TECHNICAL DATA(UBR2) Supply voltage Un Parallel connection:110120V,48V,24V,12V: 50/60Hz Series connection:220240V: 50/60Hz Insulation voltage 2.4Kv,50Hz,1 sec at Un≥42V and 600V,50Hz, 1 sec at Un<42V;between coil and housing Power consumption Pin 1.5W parallel 2.0W series Conection at Un, Cn Speed N 500rpm at 50Hz;600rpm at 60Hz Running torque Md 0.45cNm at500rpm and 0.9Un 0.4cNm at 600rpm and 0.9Un Power output Pout 0.130.15W at 50/60 Hz and 0.9 Vn Life expectancy 3 years in continuous operation at 400 Hz Ambient temperature Tamb 150C to550Ccontinuous working Up to 600C when mounted on metal plate Dimensions 36×21
Delivery terms and packaging
Port: YANTIAN PORT
Payment term
Telegraphic transfer
-
Payment Methods
We accept:
